Cabling device for electric communication cable
Pushing the cable / New method by power ball / Advantage of power ball / Stability Improved / Without load on the cable / Efficiency improved / Leave the heavy labor / Safety work
Exist method / Dragging by human power / Dragging from the tope by winch / The entire batch can be laid using equipment

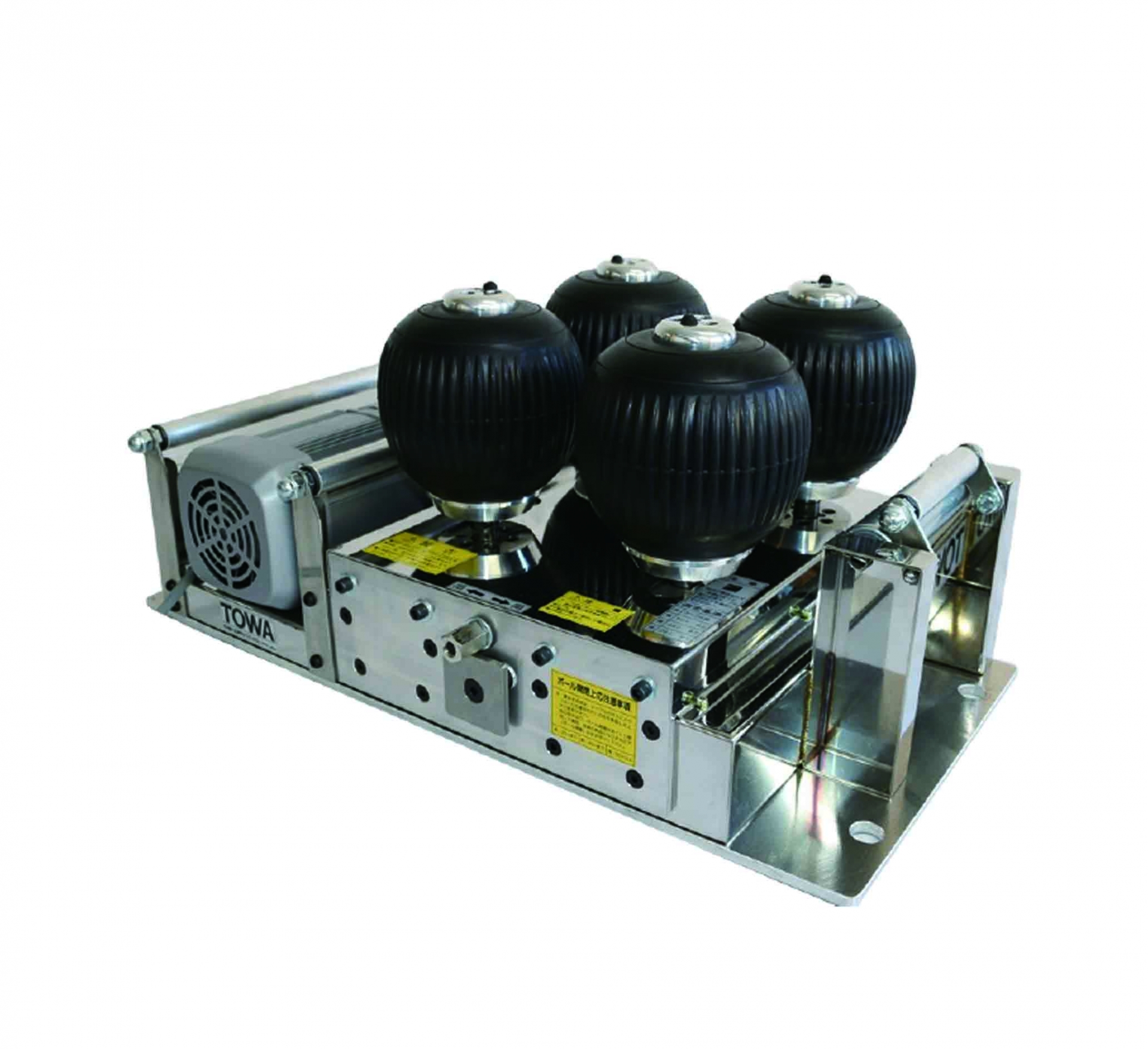

Specification of Power Ball
KHD-140/OPIII
Pushing power(kN) 3.91(400KGF)
Speed (m/min) 4.4~19.3(30hz~120hz)
Power 3Phase 220V
Cable size(mm) ∮1~110
Dimension(mm) W385*L650*H290
Weight(kg) 45.0kg/ ∮140
Maximum use possible 9ea
