Cabling device for electric communication cable
Pushing the cable / New method by power ball / Advantage of power ball / Stability Improved / Without load on the cable / Efficiency improved / Leave the heavy labor / Safety work
Exist method / Dragging by human power / Dragging from the tope by winch / The entire batch can be laid using equipment
Specification of Power Ball

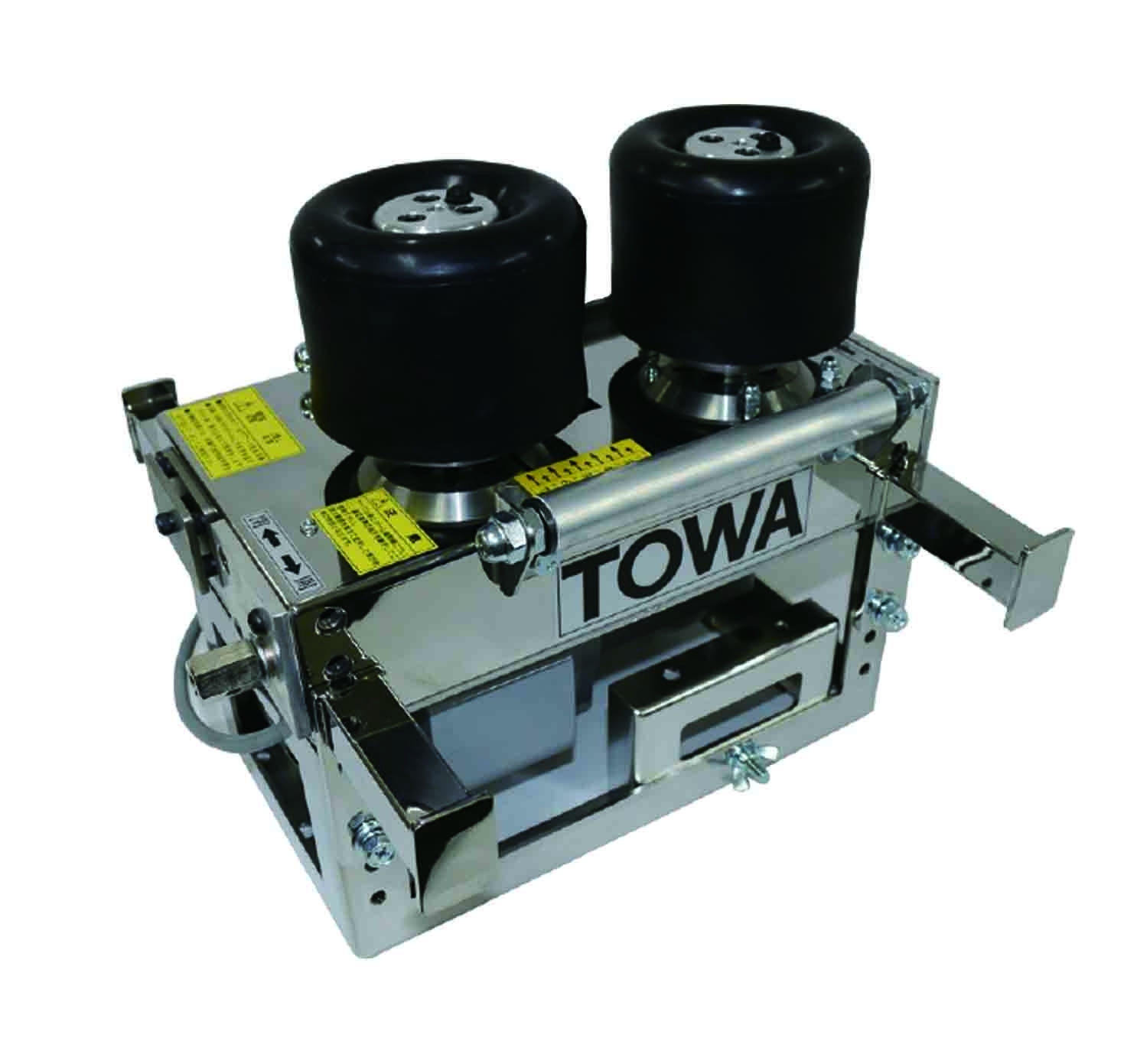

KHD-110/OPII
=optimal for single core cable and anrrow palce. The open and close of cabling ball is strict cause the shape of ball is not standard (KHD-140/OP) and 110∮ size.
However, easy to use cause light weight. Possible to combination use.
Pushing power(kN) 2.16(220KGF)
Speed (m/min) 4.8~19.3(60hz)
Power 3Phase 220V
Cable size(mm) ∮1~65
Dimension(mm) W371*L210*H310
Weight(kg) 19.0kg/ ∮110
Maximum use possible 18ea
