Cabling device for electric communication cable
Pushing the cable / New method by power ball / Advantage of power ball / Stability Improved / Without load on the cable / Efficiency improved / Leave the heavy labor / Safety work
Exist method / Dragging by human power / Dragging from the tope by winch / The entire batch can be laid using equipment
Specification of Power Ball

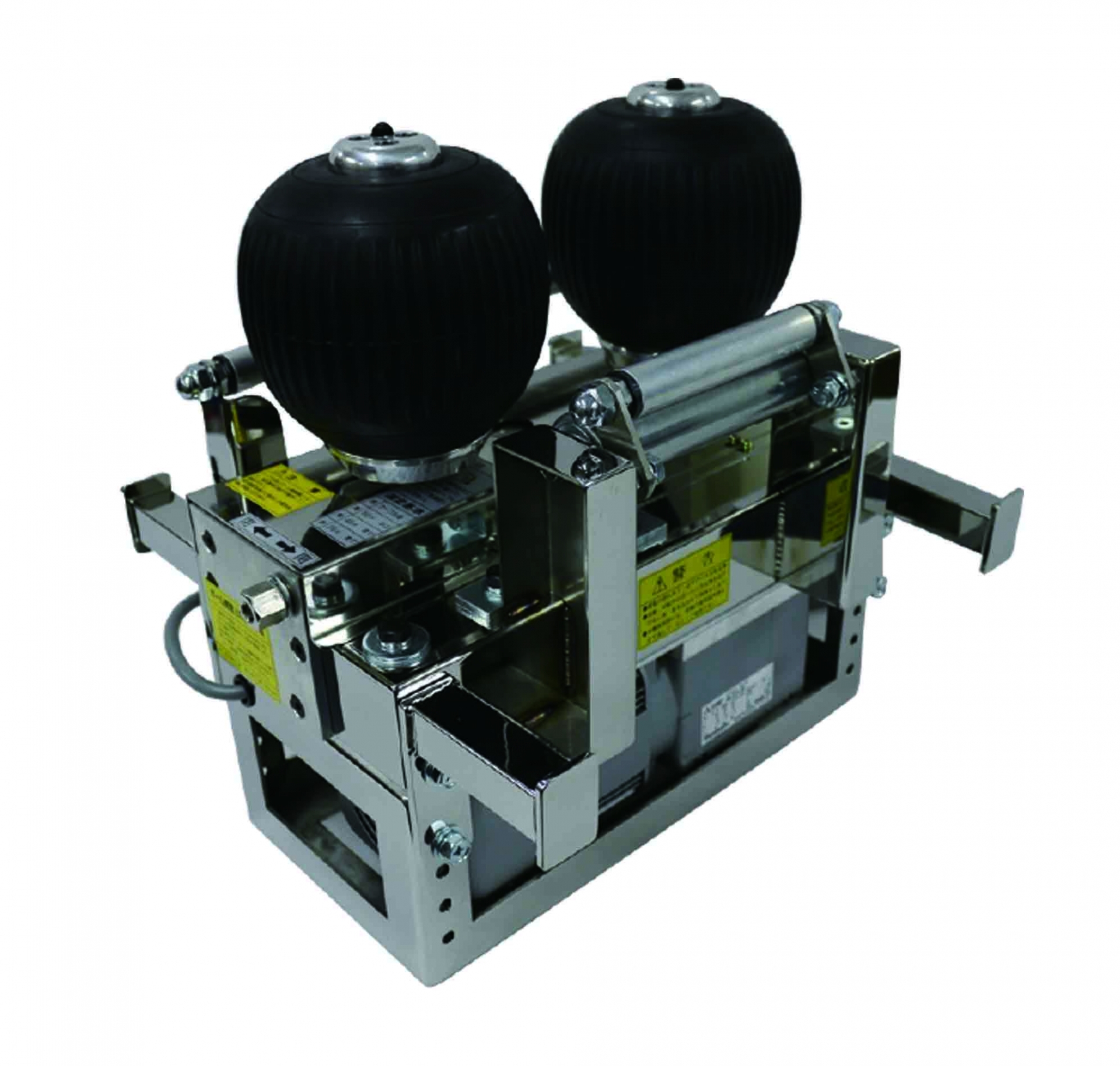

KDH-140/OPII
= Easy to move and install on narrow place. Combine several devices on rack. duct, pipe conduit pit if can not install the KHD-140.OP III device.
Pushing power(kN) 2.16(220KGF)
Speed (m/min) 4.4~19.3(30hz~120hz)
Power 3Phase 220V
Cable size(mm) ∮1~100
Dimension(mm) W380*L269*H389
Weight(kg) 240kg/ ∮140
Maximum use possible 18ea
