Cabling device for electric communication cable
Pushing the cable / New method by power ball / Advantage of power ball / Stability Improved / Without load on the cable / Efficiency improved / Leave the heavy labor / Safety work
Exist method / Dragging by human power / Dragging from the tope by winch / The entire batch can be laid using equipment

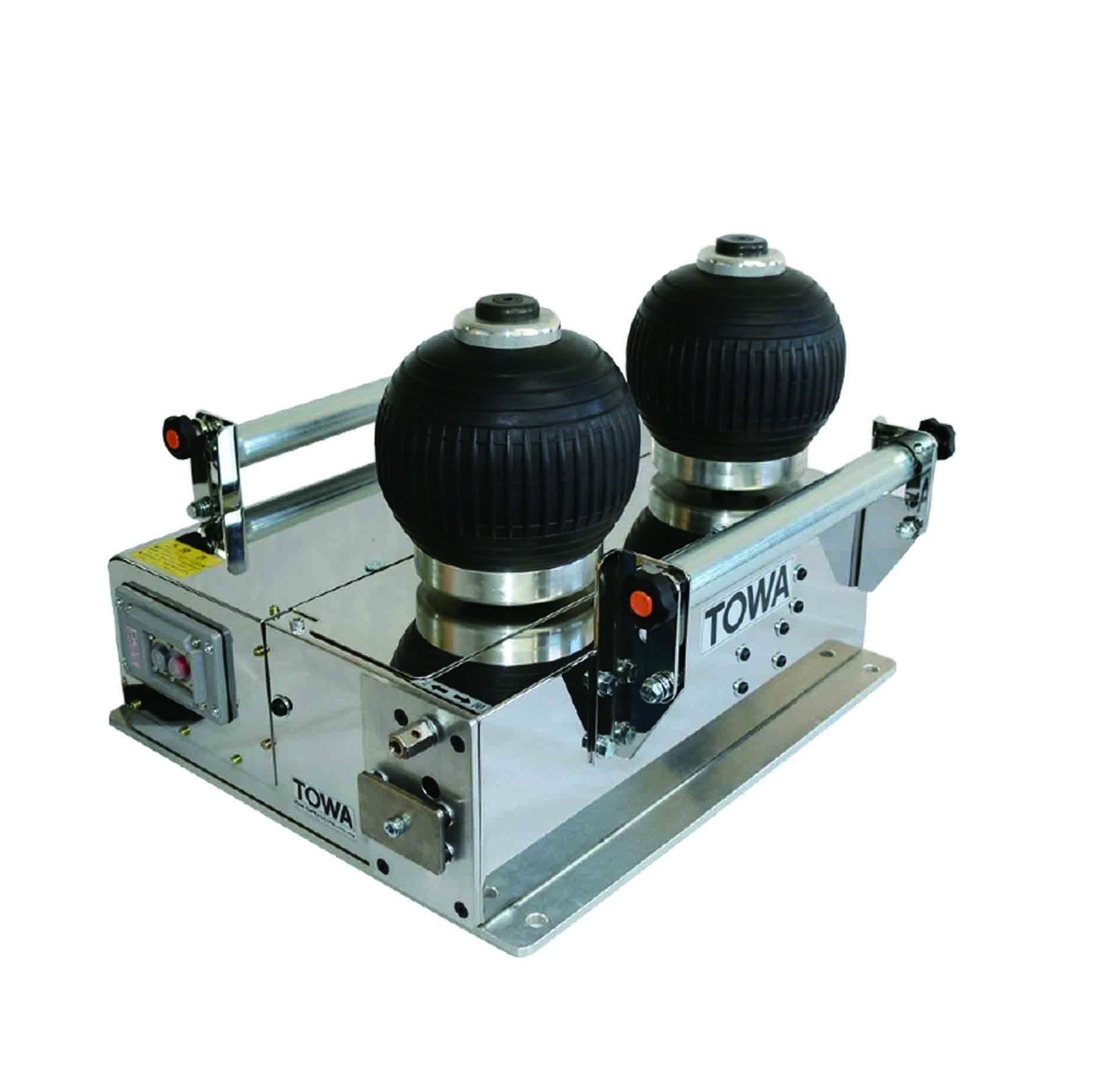

Specification of Power Ball
KHD-180/OP
=Optimal product to the cable which is over 100∮. Get more grip power if the cable is thicker. Ball size 180∮
- Pushing power(kN) 3.92(400KGF)
- Speed (m/min) 4.8~20.0(30hz~120hz)
- Power 3Phase 220V
- Cable size(mm) ∮1~160
- Dimension(mm) W598*L523*H381
- Weight(kg) 53.0kg/ ∮180
- Maximum use possible 9ea
