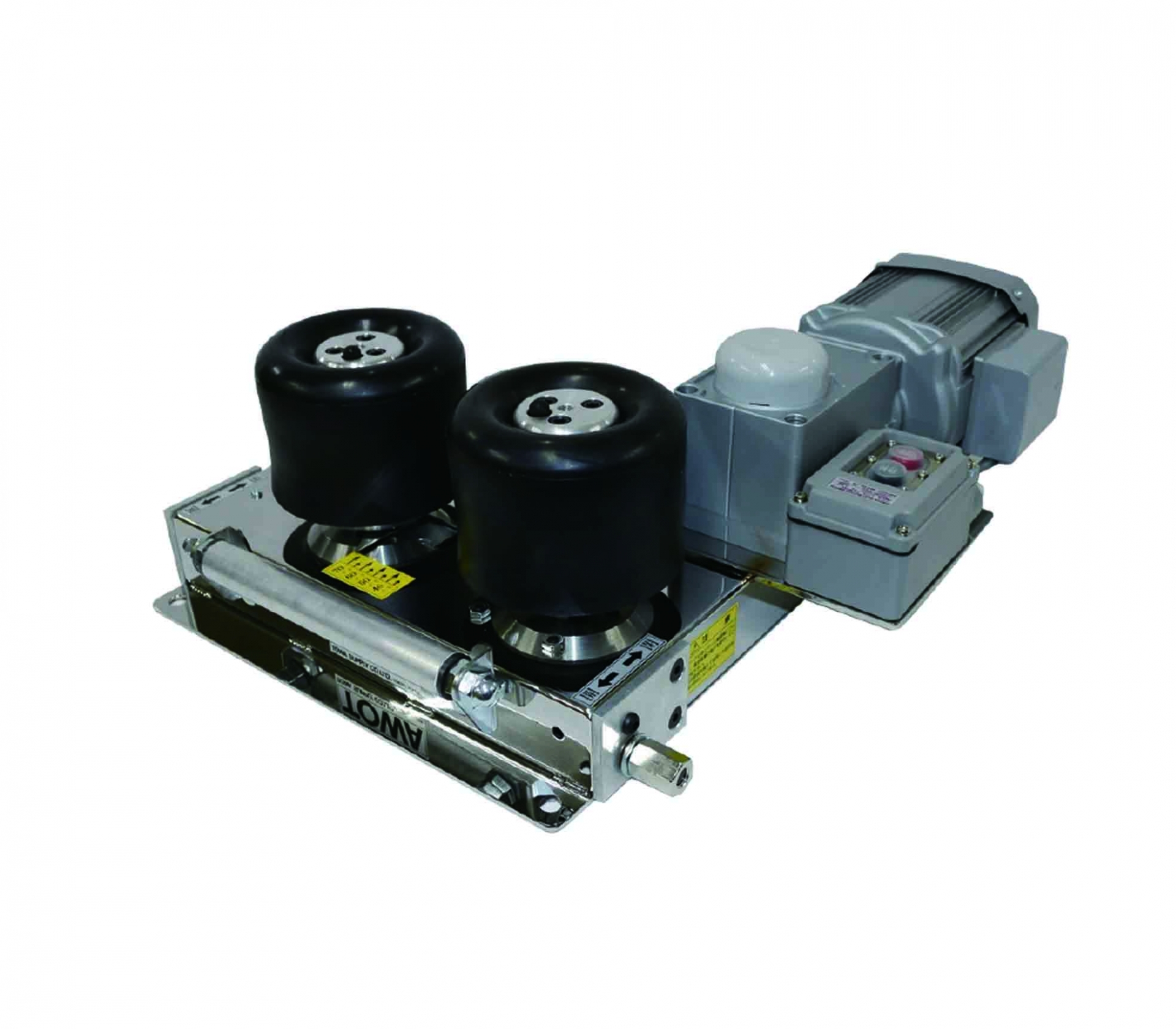

파워볼 KHD-110/OP

파워볼2제품 thumb

파워볼

KHD-110/OP

제품설명

KHD-110/OP


= How to use optimal for single core cable and anrrow palce. The open and close of cabling ball is strict cause the shape of ball is not standard and 110∮ size. However, easy to use cause light weight.


  • Pushing power(kN) 2.16(220KGF)
  • Speed (m/min) 60HZ-4.4~19.3
  • Power 3Phase 220V
  • Cable size(mm) ∮1~65
  • Dimension(mm) W418*L466*H160
  • Weight(kg) 18.0kg/ ∮110
  • Maximum use possible 18ea
