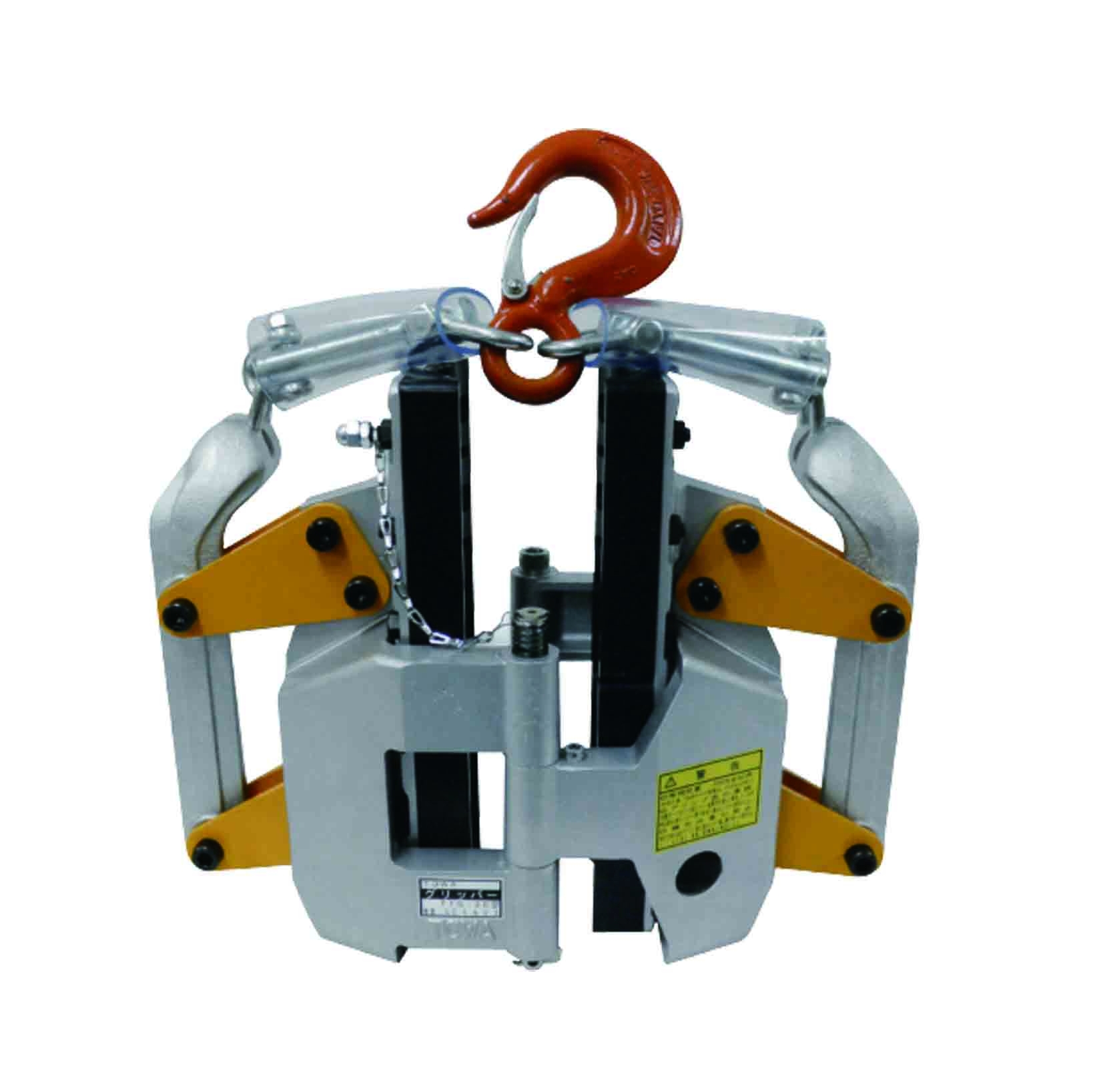

Cable Gripper (TTG-SS/S/E/L)
Dimension(mm) W380*L440*H155
Safe load 300mm
Cable size(mm) ∮15~25 / ∮25~35 / ∮35~50 / ∮50~85
Maximum load 1,000kg
Safe load 300kg
Body load 16.3kg
Possible to do vertical cabling without any safety cable by using Gripper.
Convenience : Convenient install the Gripper with 2 belt slings from the hole on top.
Compatibility : Install any point on vertical area and possible to use during the cabling.
Functionality : No need additional human power cause the Gripper acts as a brake by 2 sling belts.
Safety : Product for prevent fall accident while working about safety pulling cable.
Applied : Power cable (Low Pressure, High Pressure, Special High Pressure) Communication, Cable Application
